The Ultimate Inspection Hub for CMV Combination Safety

The Ultimate Inspection Hub for CMV Combination Safety

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Mettler Toledo
Số mô hình: Kết hợp CMV
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: Có thể đàm phán
chi tiết đóng gói: Hộp Caron
Thời gian giao hàng: 10-30 ngày
Khả năng cung cấp: 2000 bộ mỗi tháng
Tiếp xúc
Chi tiết sản phẩm
Sản phẩm: Kết hợp CMV Loại đóng gói: Túi, chai, bó, thùng, vỏ, lon composite, gói dòng chảy
Ứng dụng kiểm tra: Kiểm tra mã, Kiểm tra nhãn, Kiểm soát trọng lượng Đặc tính sản phẩm: Các gói đóng băng sâu, khô, trung bình, hộp mở, tròn, các sản phẩm được bọc riêng lẻ
Ngành công nghiệp: Hóa chất, Thực phẩm & Đồ uống, Kim loại, Nhựa và Điện tử, Pharma & Biotech Cân chính xác: từ ± 0,01 g
Phân khúc công nghiệp: Ô tô, Bakery và bánh kẹo, bia, rượu vang và đồ uống có cồn khác, mỹ phẩm Tốc độ dòng tối đa: 180 m/phút
Thông lượng tối đa: 500 ppm Vật liệu số: 2499000200
Đọc thiết bị: MÁY ẢNH THÔNG MINH Trường quan điểm tối đa: 110 x 110 mm
Làm nổi bật:

CMV Combination inspection hub

,

Mettler Toledo load cell

,

safety inspection equipment

The Ultimate Inspection Hub for CMV Combination Safety
Product Overview

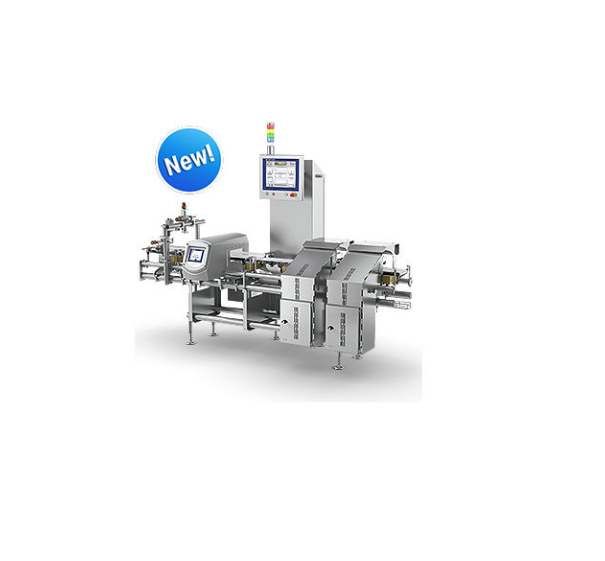

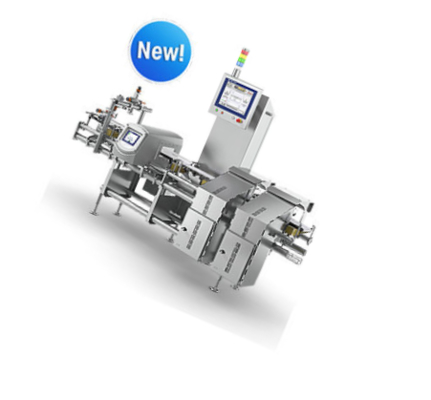

The CMV Combination system is an advanced, all-in-one solution that integrates three critical inspection technologies into a single, compact unit: a high-precision checkweigher, a sensitive metal detector, and a powerful vision inspection system. This powerful combination serves as a comprehensive quality control point, ensuring products meet weight specifications while being free from metal contaminants and having correct, intact packaging.

Key Features
  • 3-in-1 Inspection Solution: Combines metal detection, weight control, and label inspection in one integrated device
  • Configuration Flexibility: Customize with various metal detectors, checkweighers, and label inspection systems
  • Space-Saving Design: Maximizes production space with only four feet on the ground
  • Reduced Total Cost of Ownership: Single provider for configuration support, training and service
Technical Specifications
Material No. 2499000200
IP Rating IP54, IP65
Compatible Software ProdX
Connectivity Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution Checkweighing-Metal Detection-Vision
Max Product Weight 10 Kg
Max Weighing Zones 7
Weighing Technology EMFR, Strain Gauge
HMI 12" Touchscreen, 15" Touchscreen
Max Camera Field of View 110 x 110 mm
Label Quality Inspection Graphical ID, Label ID, Label Placement, Label Skew
Label Data Inspection 1D/2D Barcode Alpha Numeric
Number of Reading Devices 8
Product Attributes
Attribute Value
Product CMV Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application Code Inspection, Label Inspection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.01 g
Industry Segment Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics
Max Line Speed 180 m/min
Max Throughput 500 ppm
Reading Devices Smart Camera
