CM Washdown Integrated Product Inspection for Wet Environments

CM Washdown Integrated Product Inspection for Wet Environments

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: Mettler Toledo
Số mô hình: Kết hợp CM
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Có thể đàm phán
Packaging Details: Caron box
Thời gian giao hàng: 10-30 ngày
Supply Ability: 2000 set per month
Tiếp xúc
Chi tiết sản phẩm
Sản phẩm: CM kết hợp Loại đóng gói: Thùng, chai, gói, hộp, vỏ, gói dòng chảy, khay
Ứng dụng kiểm tra: Phát hiện ô nhiễm, phát hiện cơ thể nước ngoài, kiểm soát cân nặng Đặc tính sản phẩm: Các gói đóng băng sâu, khô, trung bình, hộp mở, tròn, các sản phẩm được bọc riêng lẻ
Ngành công nghiệp: Hóa chất, Thực phẩm & Đồ uống, Kim loại, Nhựa và Điện tử, Pharma & Biotech Cân chính xác: từ ± 0,05 g
Phân khúc công nghiệp: Bánh và bánh kẹo, bia, rượu vang và đồ uống có cồn khác, mỹ phẩm, sữa Trọng lượng sản phẩm tối đa: 10 kg
Tốc độ dòng tối đa: 180 m/phút Thông lượng tối đa: 800 ppm
Làm nổi bật:

washdown integrated load cell

,

wet environment product inspection

,

Mettler Toledo washdown load cell

CM Washdown Integrated Product Inspection for Wet Environments
Product Overview

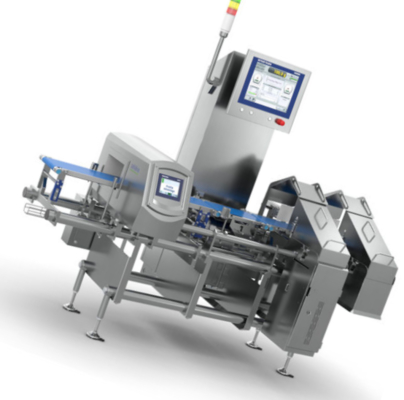

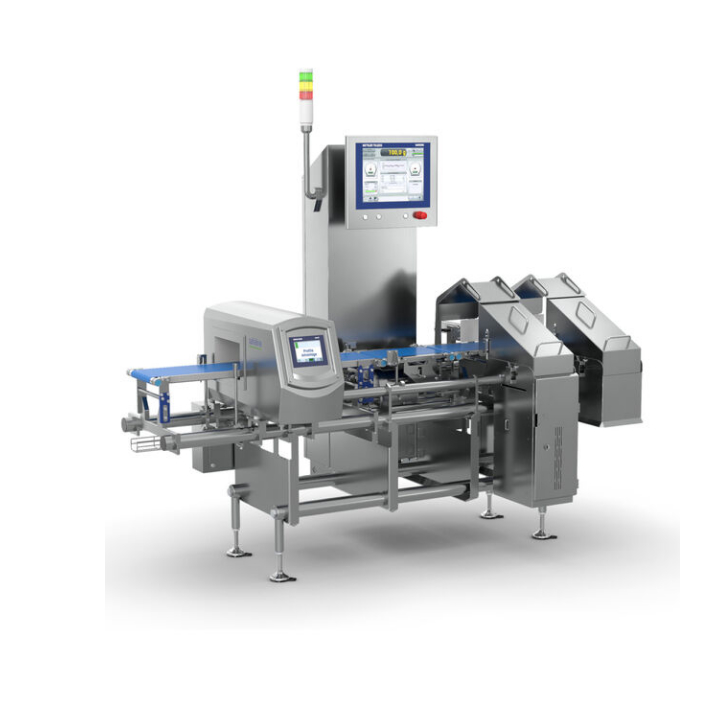

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features
  • 2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
  • Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
  • Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
  • Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes
Product Specifications
Material No: 2499000500
IP Rating: IP69
Compatible Software: ProdX
Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution: Checkweighing-Metal Detection
Max Product Width: 400 mm
Max Weighing Zones: 7
Weighing Technology: EMFR, Strain Gauge
HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Max Product Height: 200mm
Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz
Product Attributes
Attribute Value
Product CM Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.05 g
Industry Segment Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight 10 kg
Max Line Speed 180 m/min
Max Throughput 800 ppm
CM Washdown Integrated Product Inspection for Wet Environments 0
