| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Mettler Toledo |
| Số mô hình: | Cân mô -đun SWB805 316 4.4T/10K C1 |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | hộp caron |
| Thời gian giao hàng: | 10-30 ngày |
| Khả năng cung cấp: | 2000 bộ mỗi tháng |
| sản phẩm: | Mettler Toledo pin tải | Công suất tối đa: | 10.000 lb (4.400 kg) |
|---|---|---|---|
| Vật liệu: | 316 Thép không gỉ | đo lường: | NTEP III 1.6 M OIML C1 |
| Load cell: | SLB815 | Độ chính xác: | Mức thấp |
| đánh giá bảo vệ: | IP68/69K | Môi trường / Vật liệu: | Rửa sạch / vệ sinh thường xuyên |
| Phê duyệt nguy hiểm: | ATEX, FM, CFM | Quan trọng: | Tiêu chuẩn |
| cáp: | 5 triệu | ||
| Làm nổi bật: | 316 stainless steel weigh module,high-accuracy 10K load cell,Mettler Toledo 4.4T load cell |
||

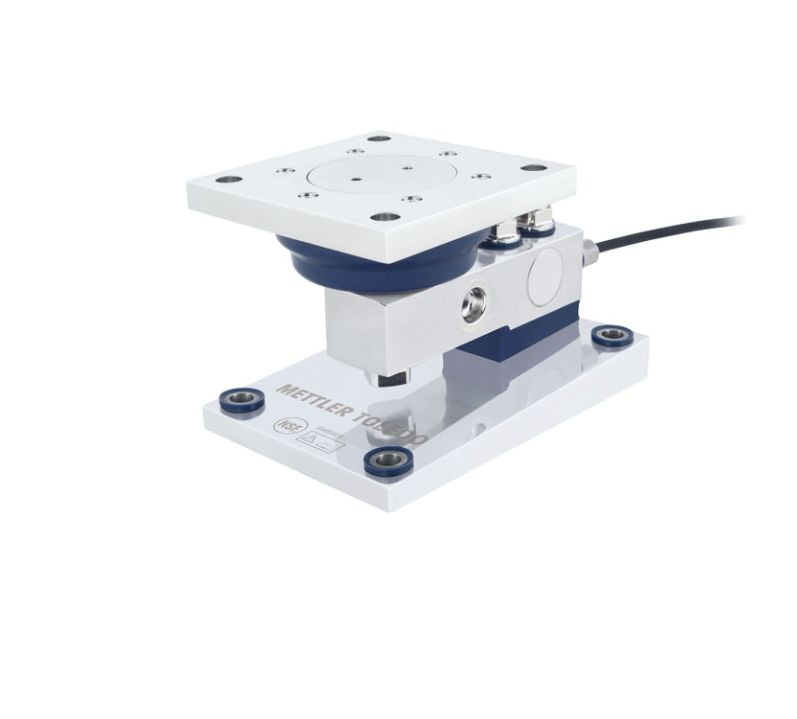

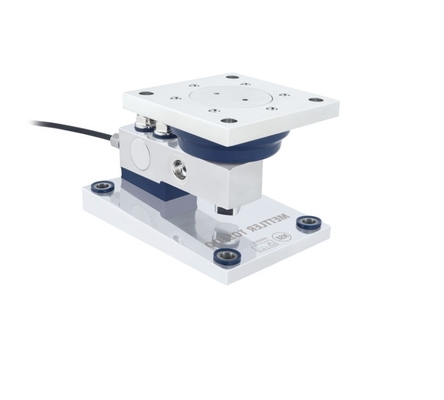

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.
Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.
Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, thus no risk of contamination.
A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 10,000 lb (4,400 kg) |
| Material | 316 Stainless steel |
| Metrology | NTEP III 1.6 M OIML C1 |
| Load Cell | SLB815 |
| Accuracy | Low |
| Protection Rating | IP68/69k |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |
| Cable | 5 m |
